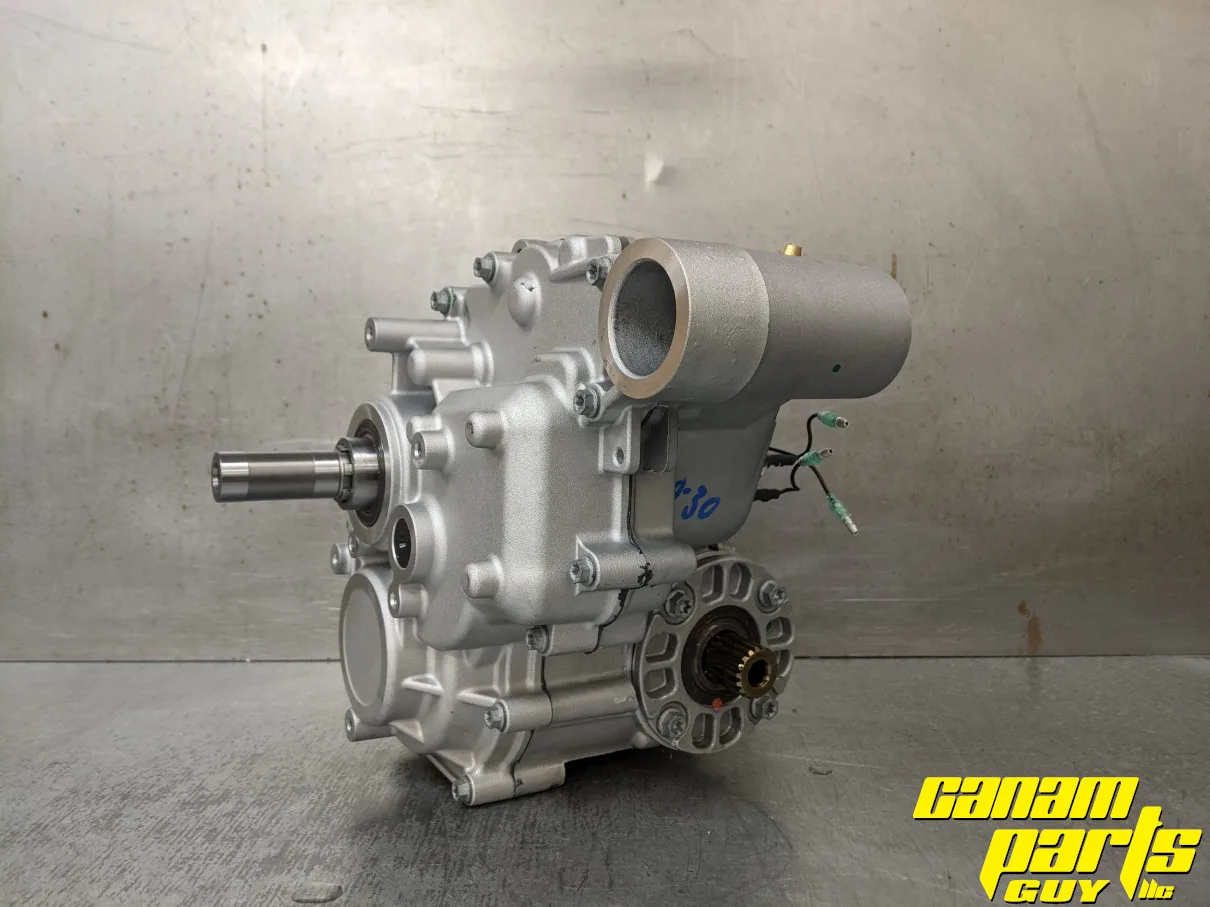

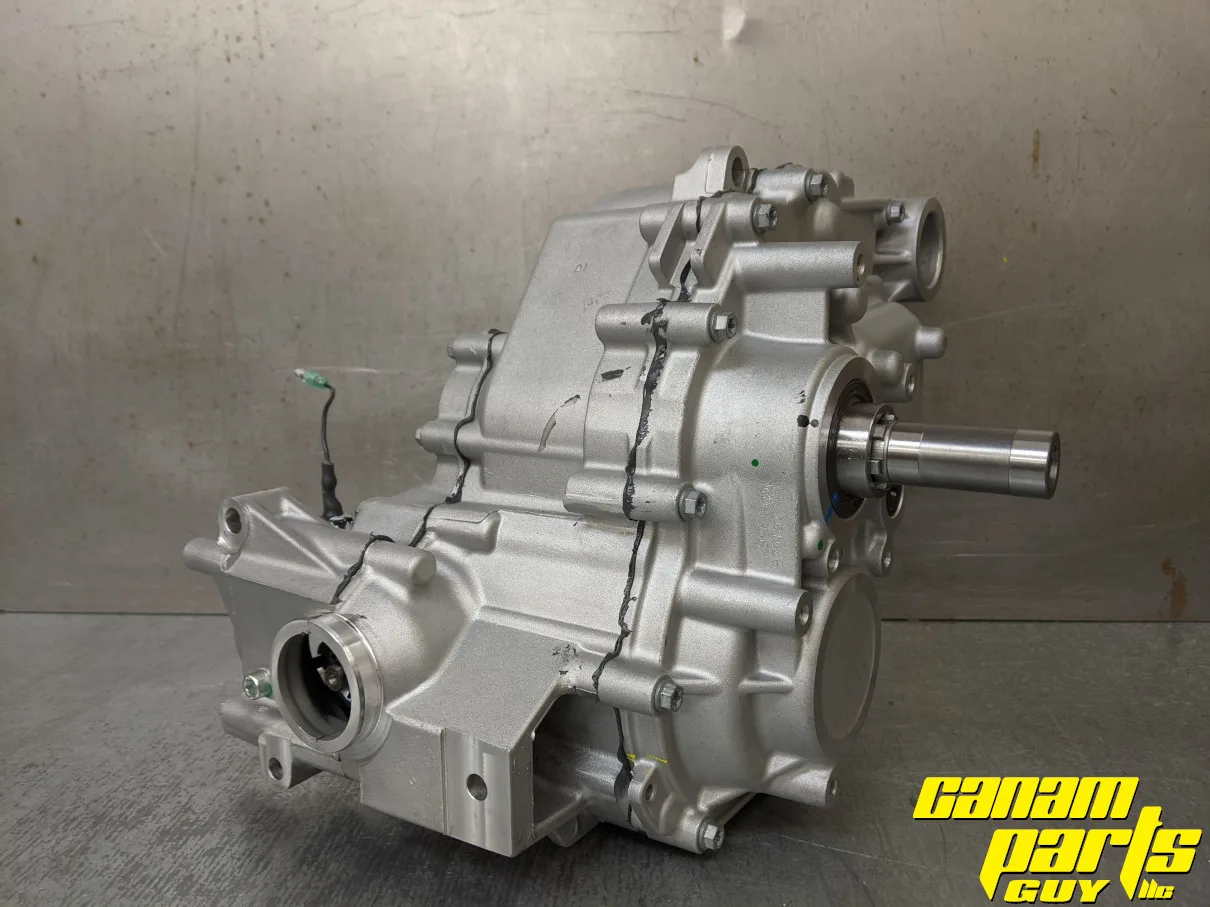

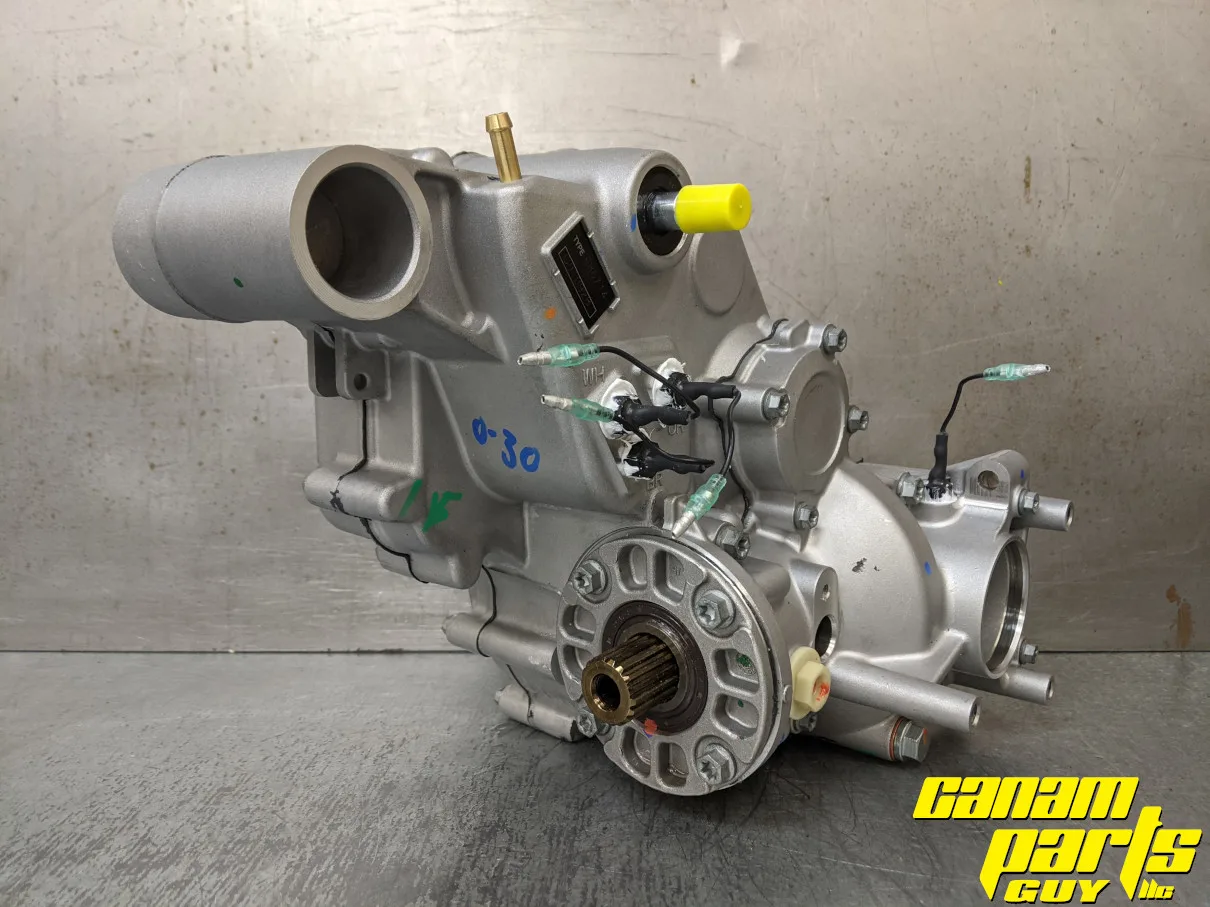

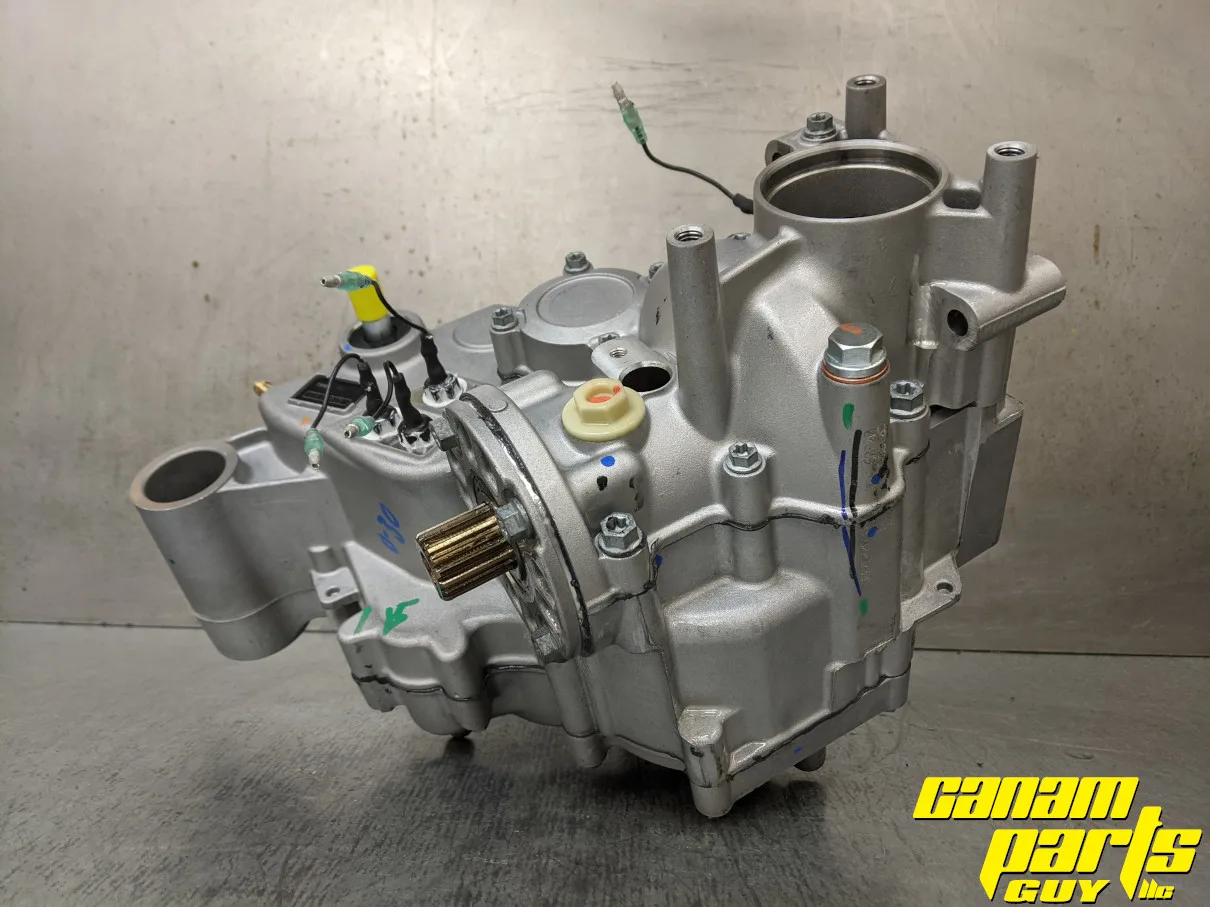

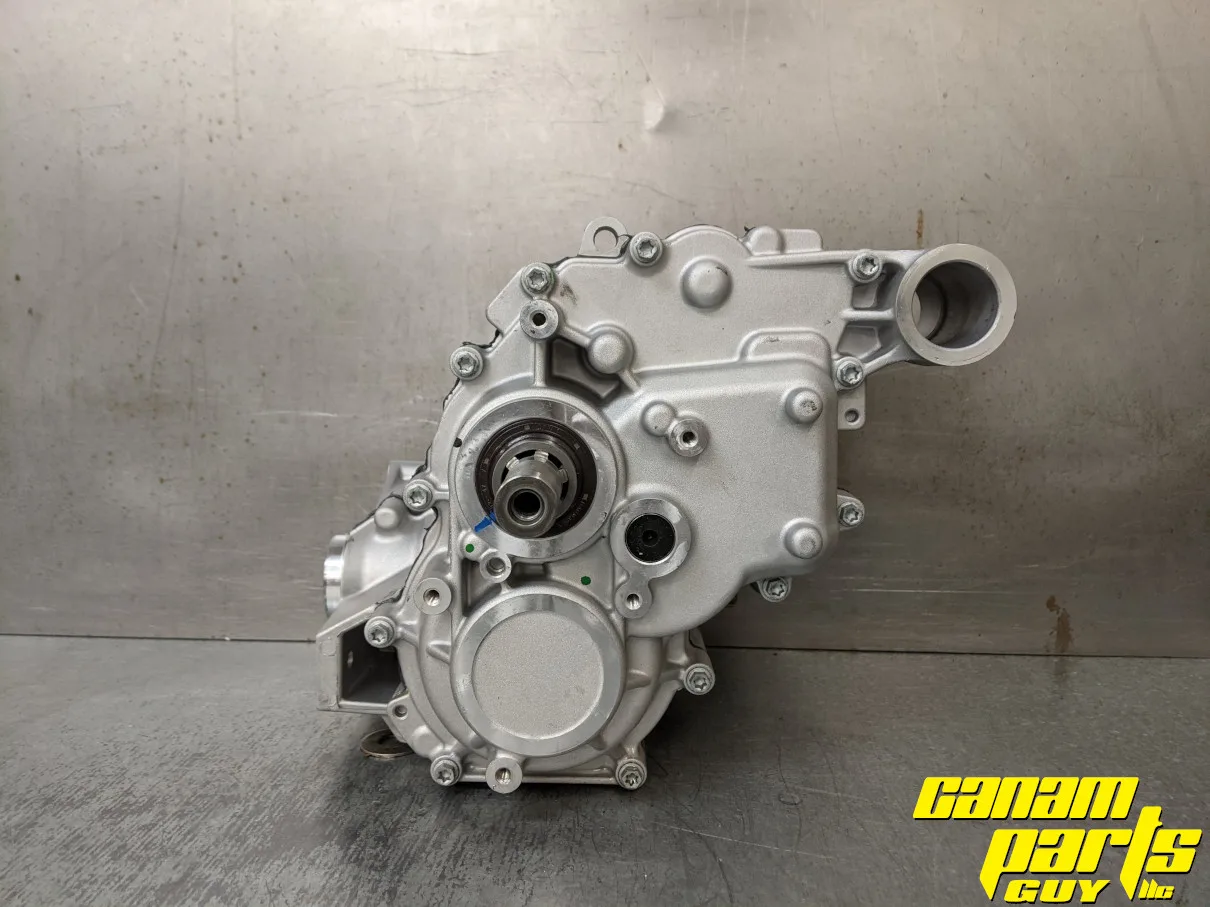

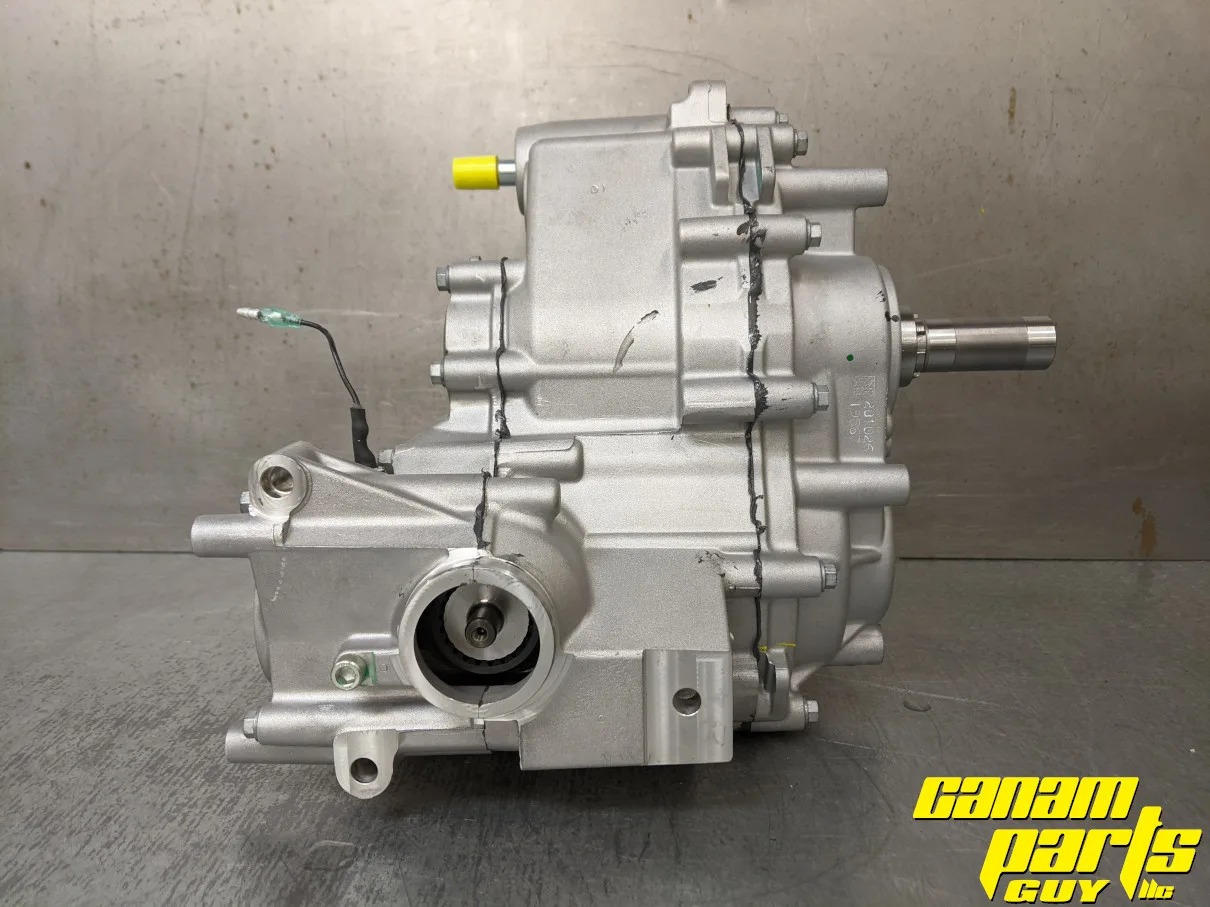

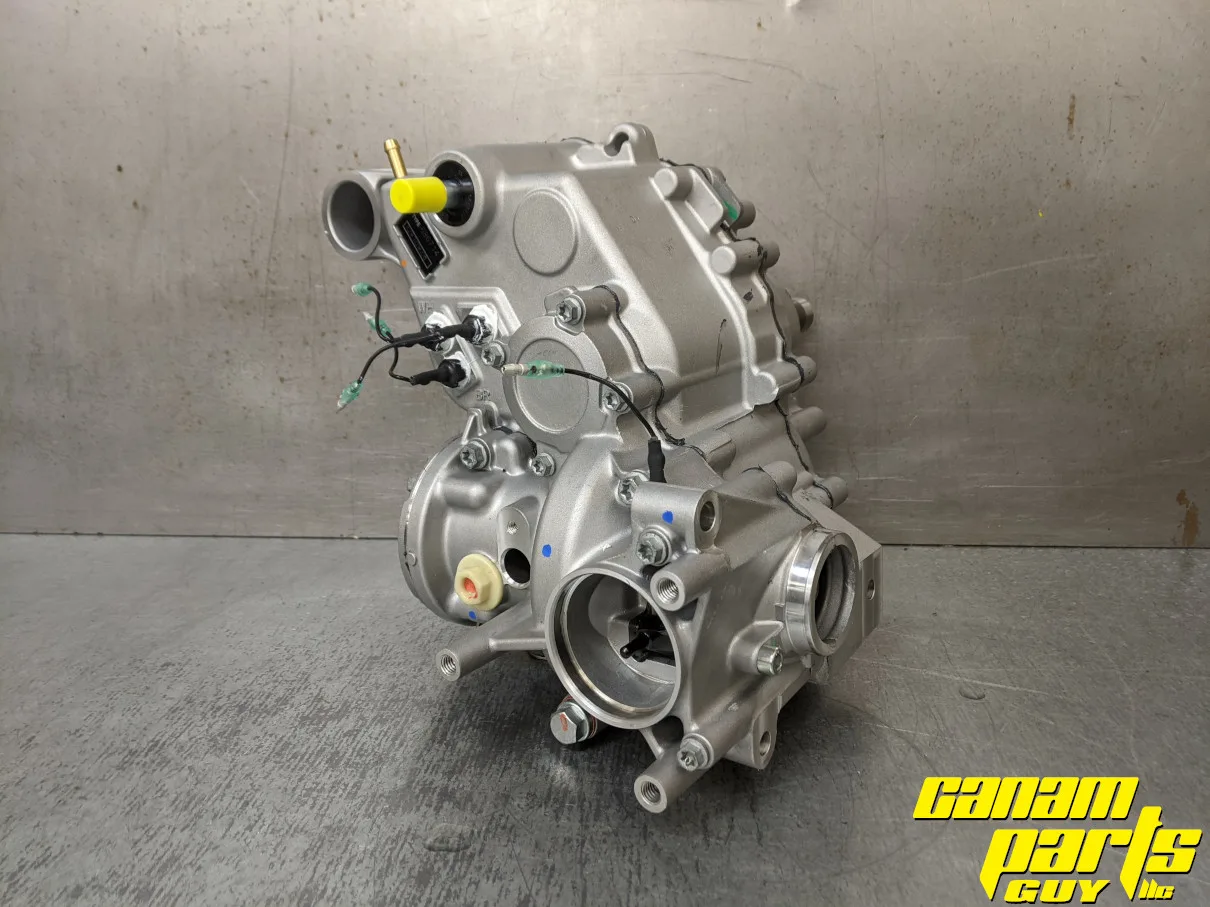

New Can Am ATV 800 Standard Ratio Small Gear Box / Transmission

Will work on all Can-am Vtwin 500/570/650/800/850 Both Outlander or Renegade.

  • New Can-Am GEAR BOX

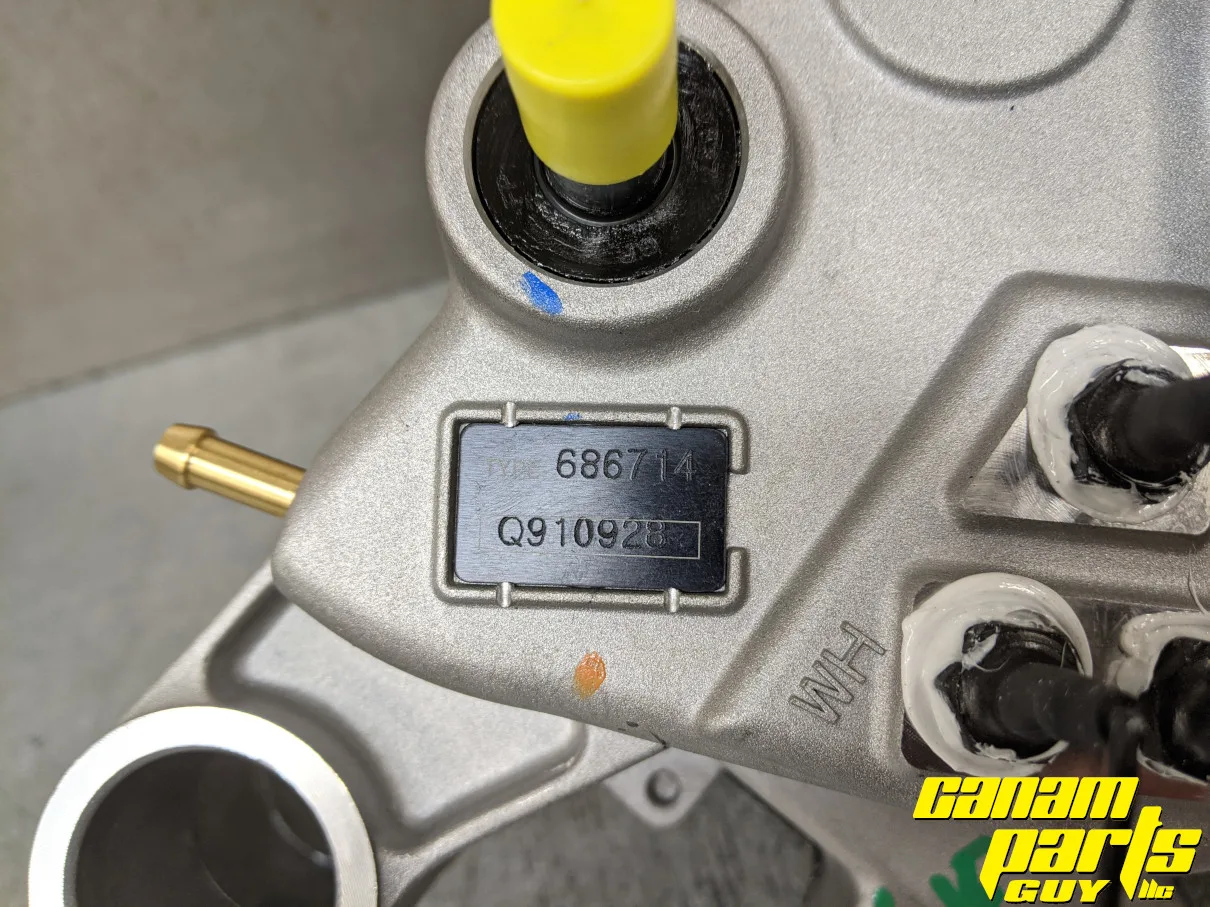

  • Current Part Number- 420686714
  • Replaces: 420684780, 420685391, 420685392, 420685394, 420685396, 420685397
  • NEW OEM Canam Part NOT A REBUILD, ALL NEW
  • This is the Standard Ratio gearbox for any 500/570/650/800/850 v twin Can-am, Renegade or Outlander.

2015 and newer non XMR outlander 1000/1000R have this style gearbox, if you have fitment questions, please contact us!

Teeth count and gear ratio
Ring & Pinion 32/13 = 2.462
High Gear set 34/29 = 1.172
Low Gear set 43/20 = 2.150

High final ratio 2.88:1
Low final ratio 5.29:1

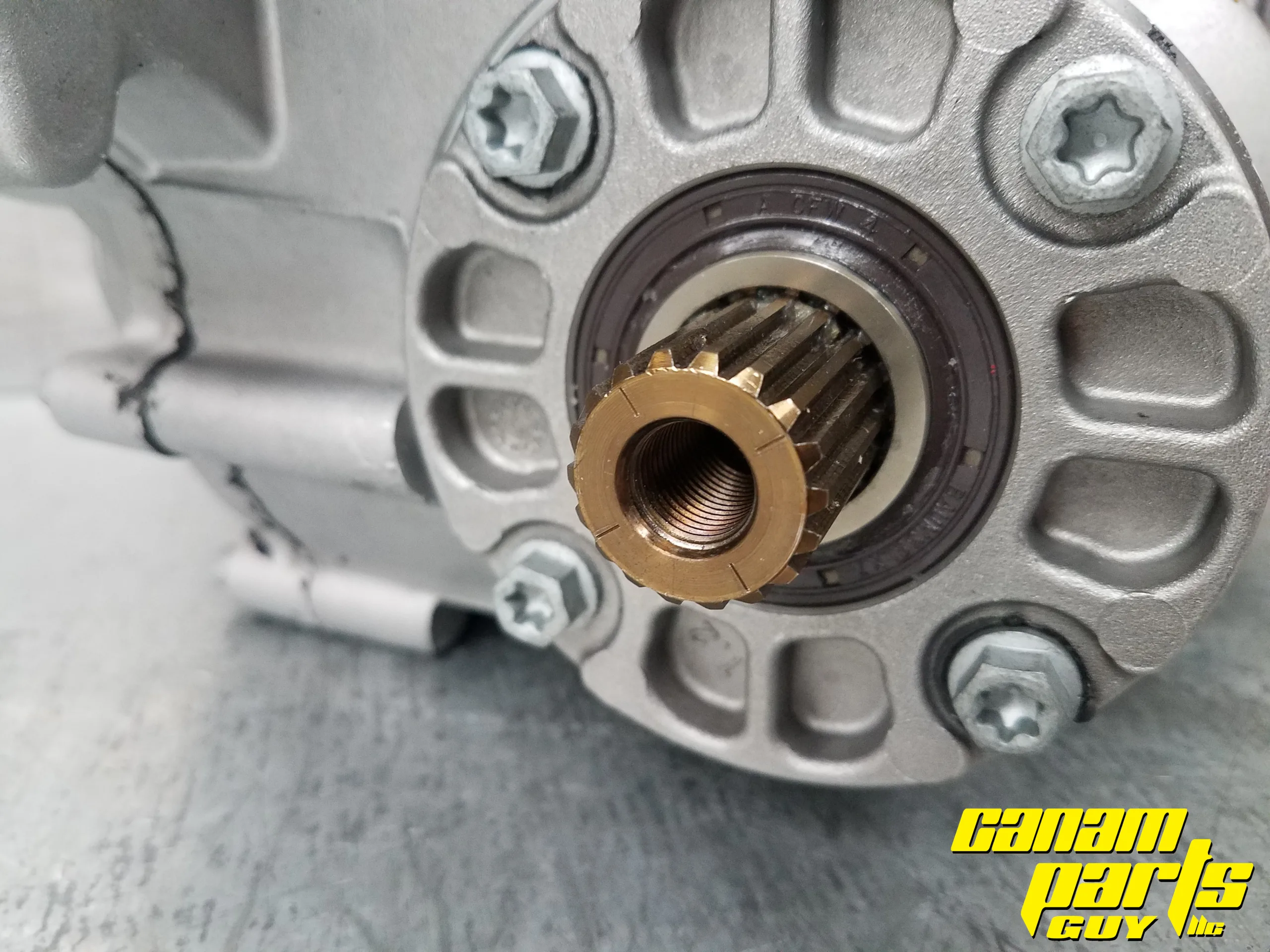

Driveshaft bolt not included; this may be a different size from your current bolt.
