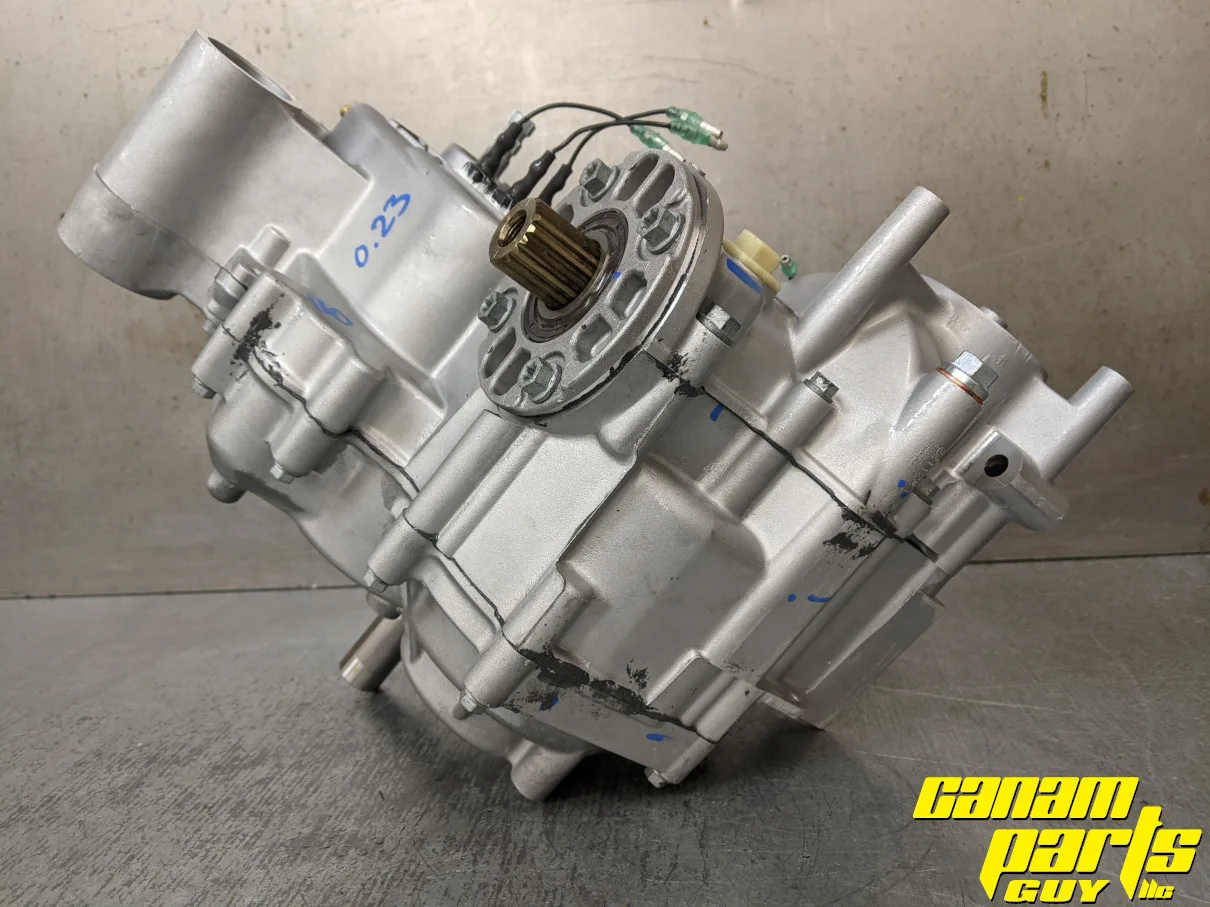

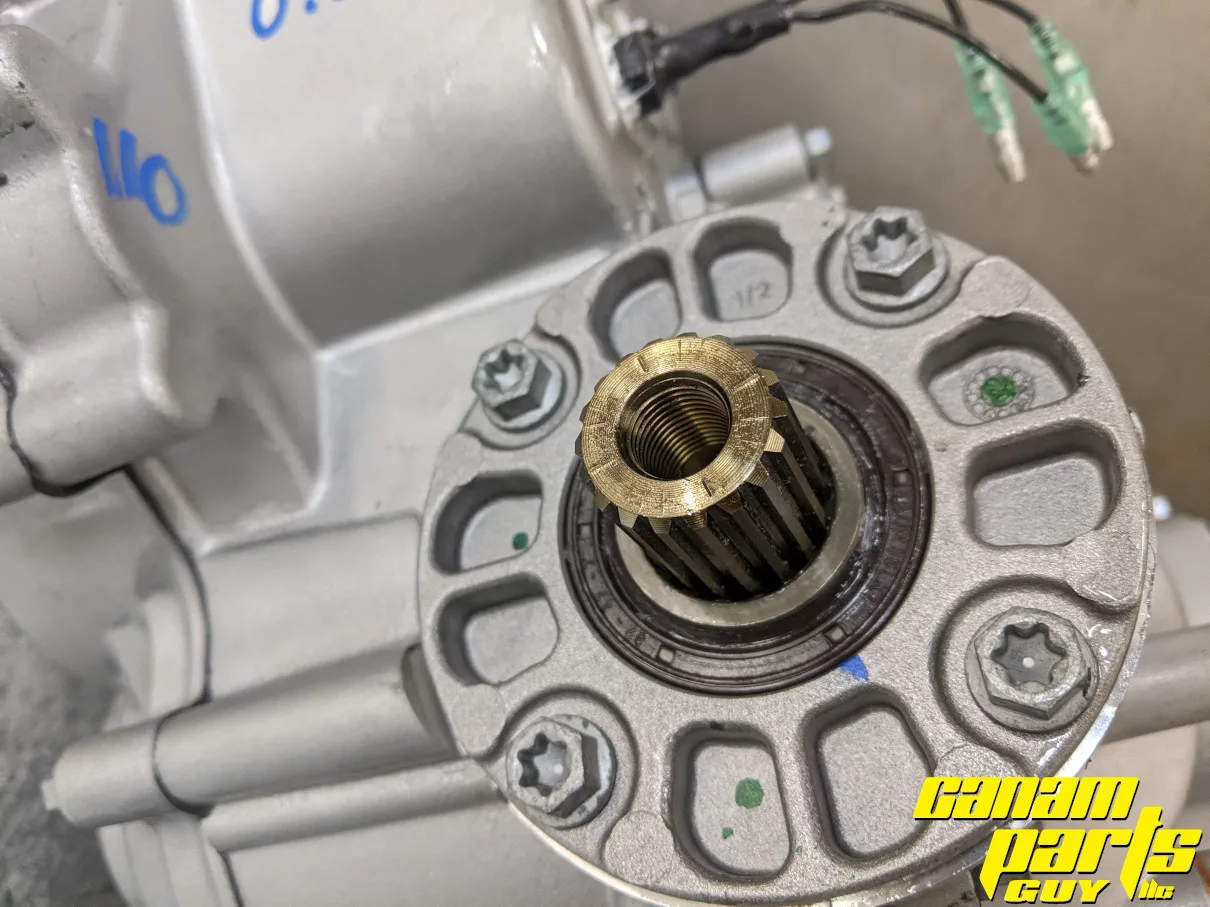

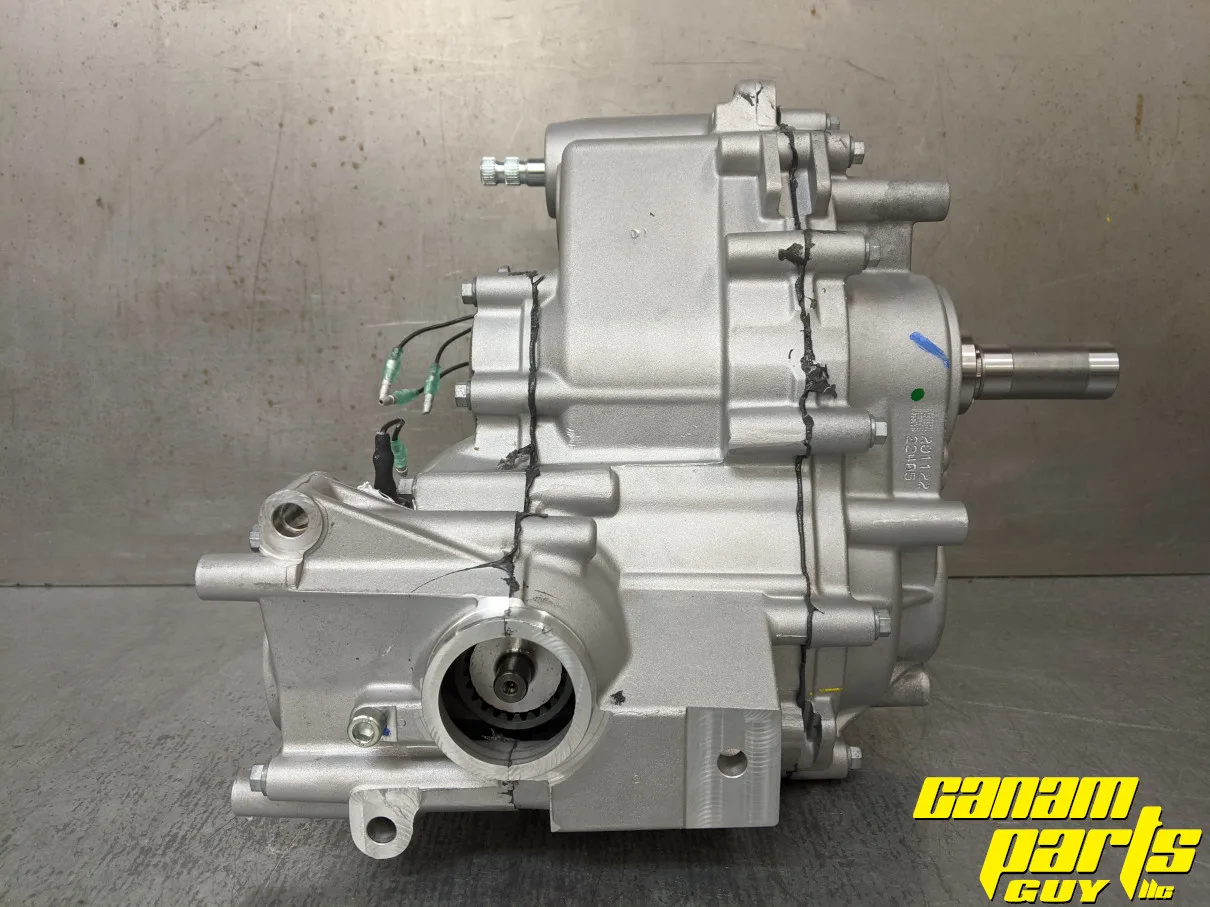

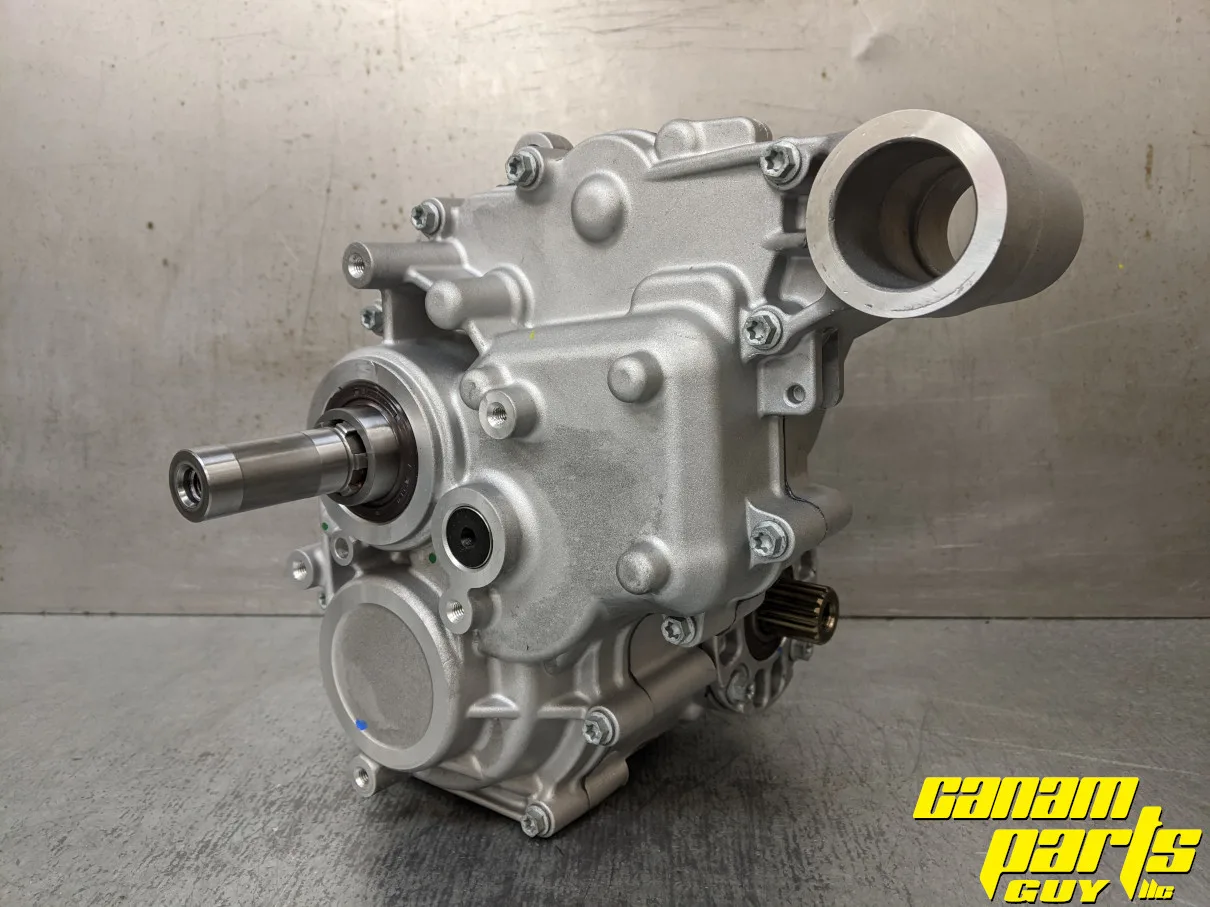

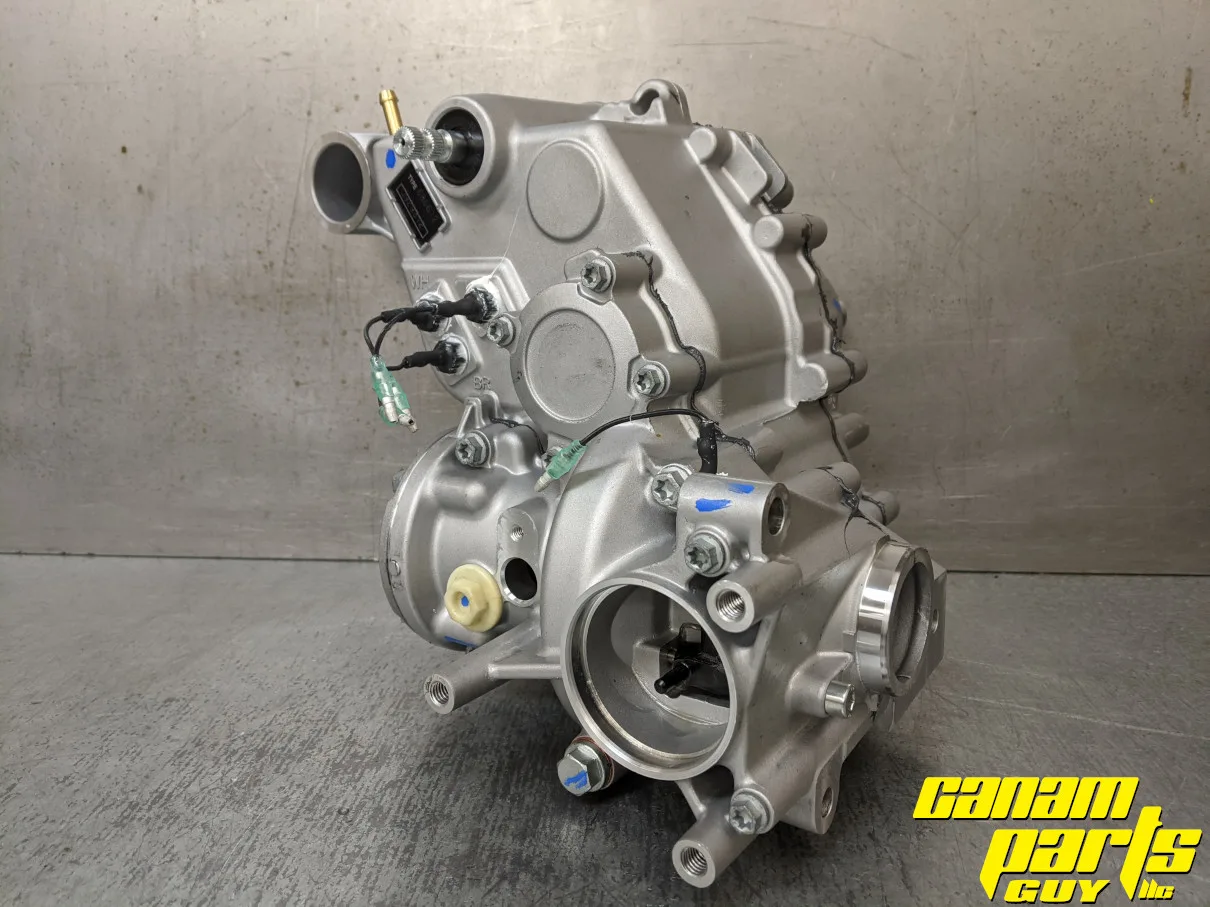

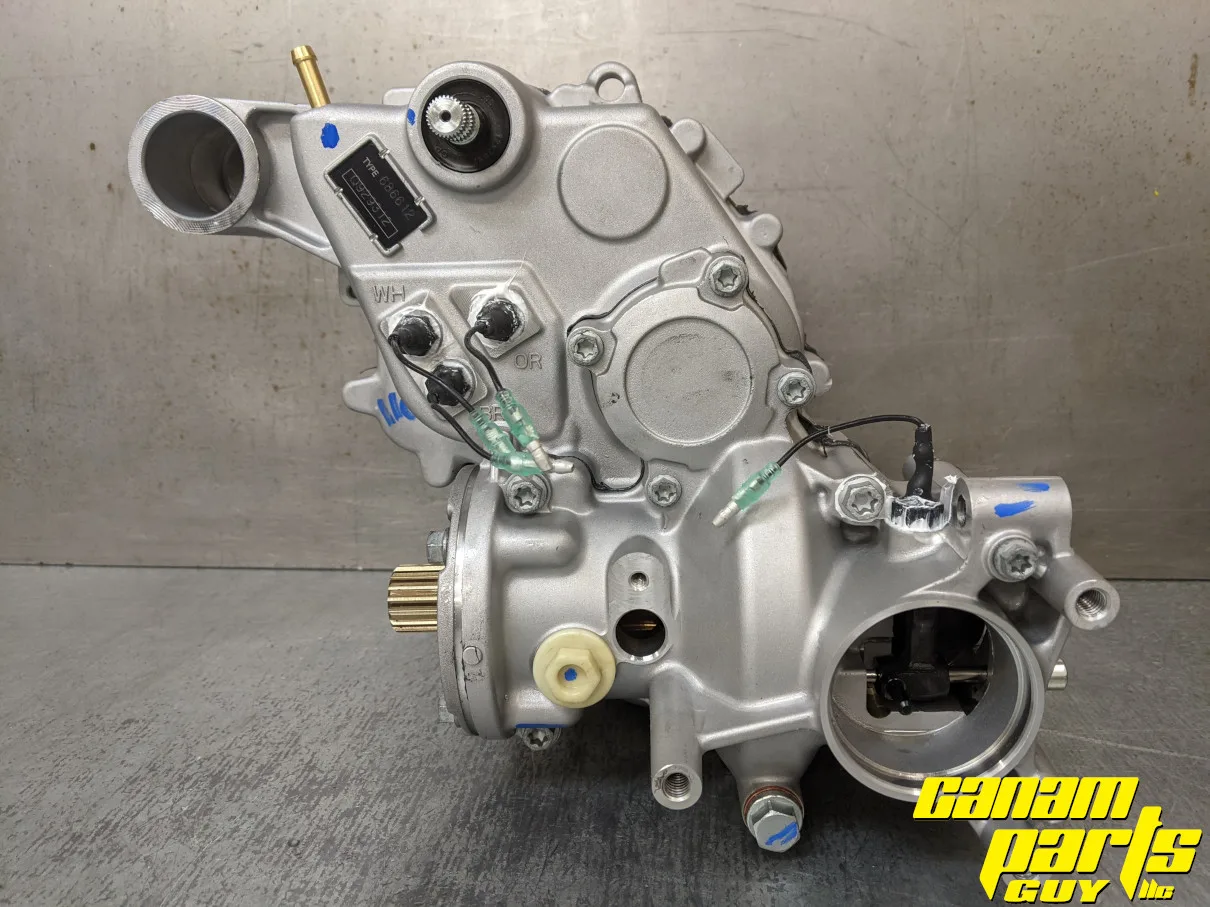

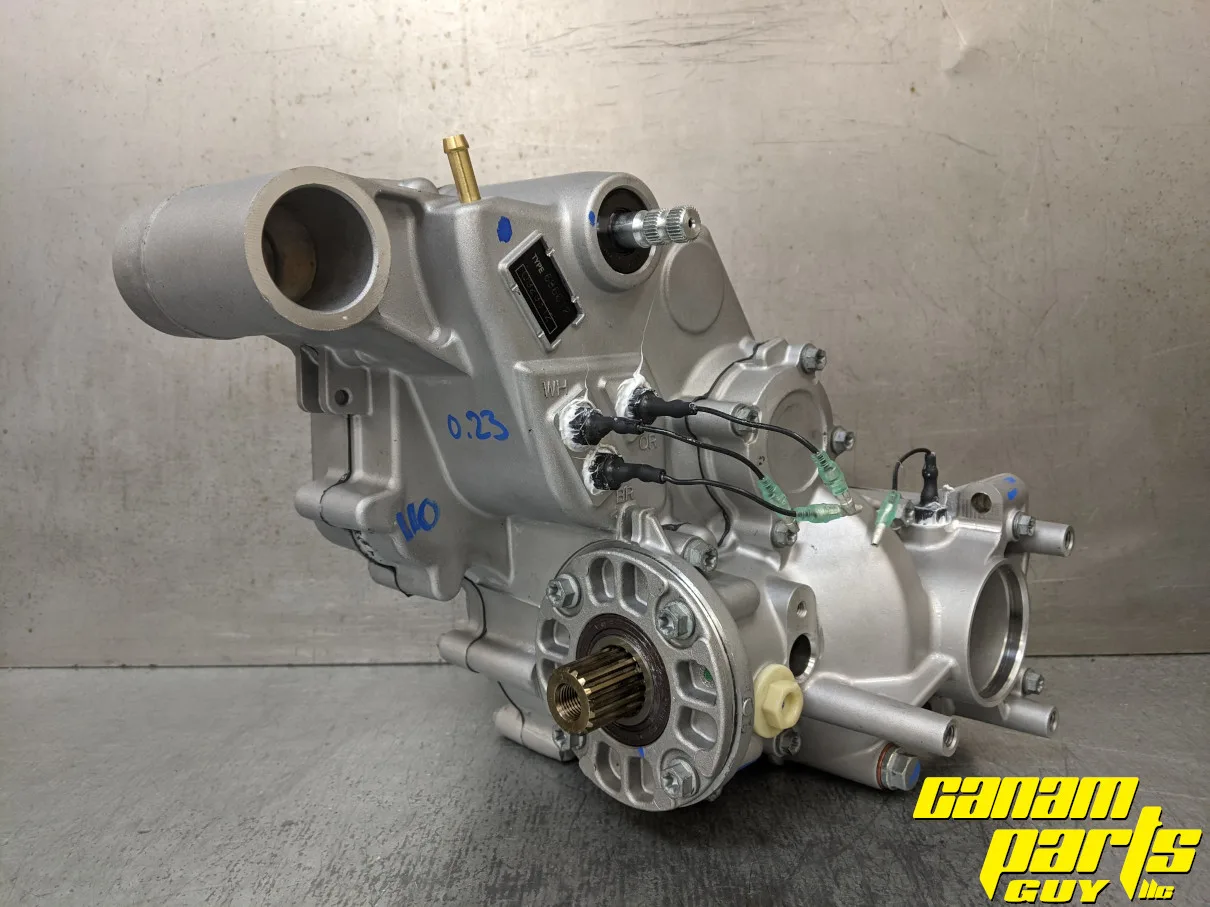

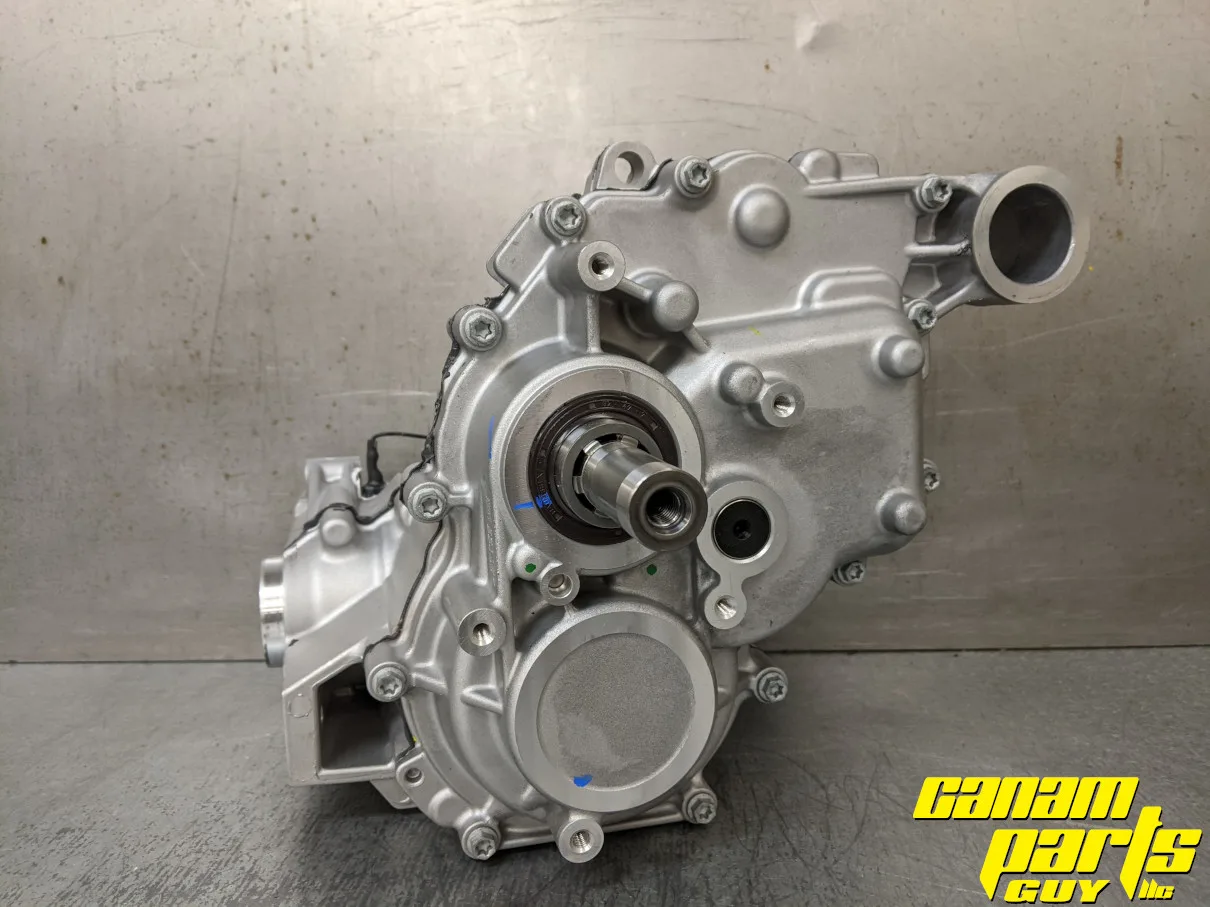

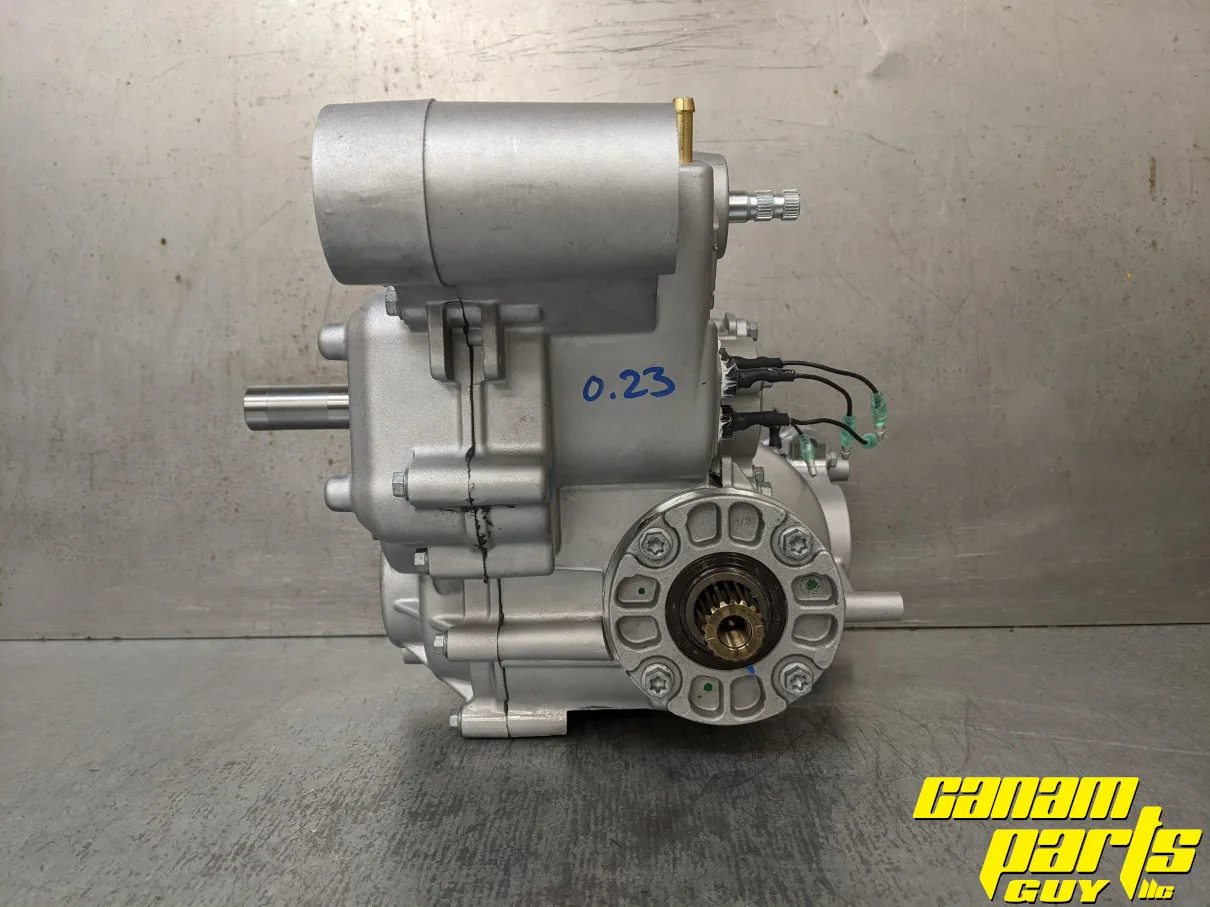

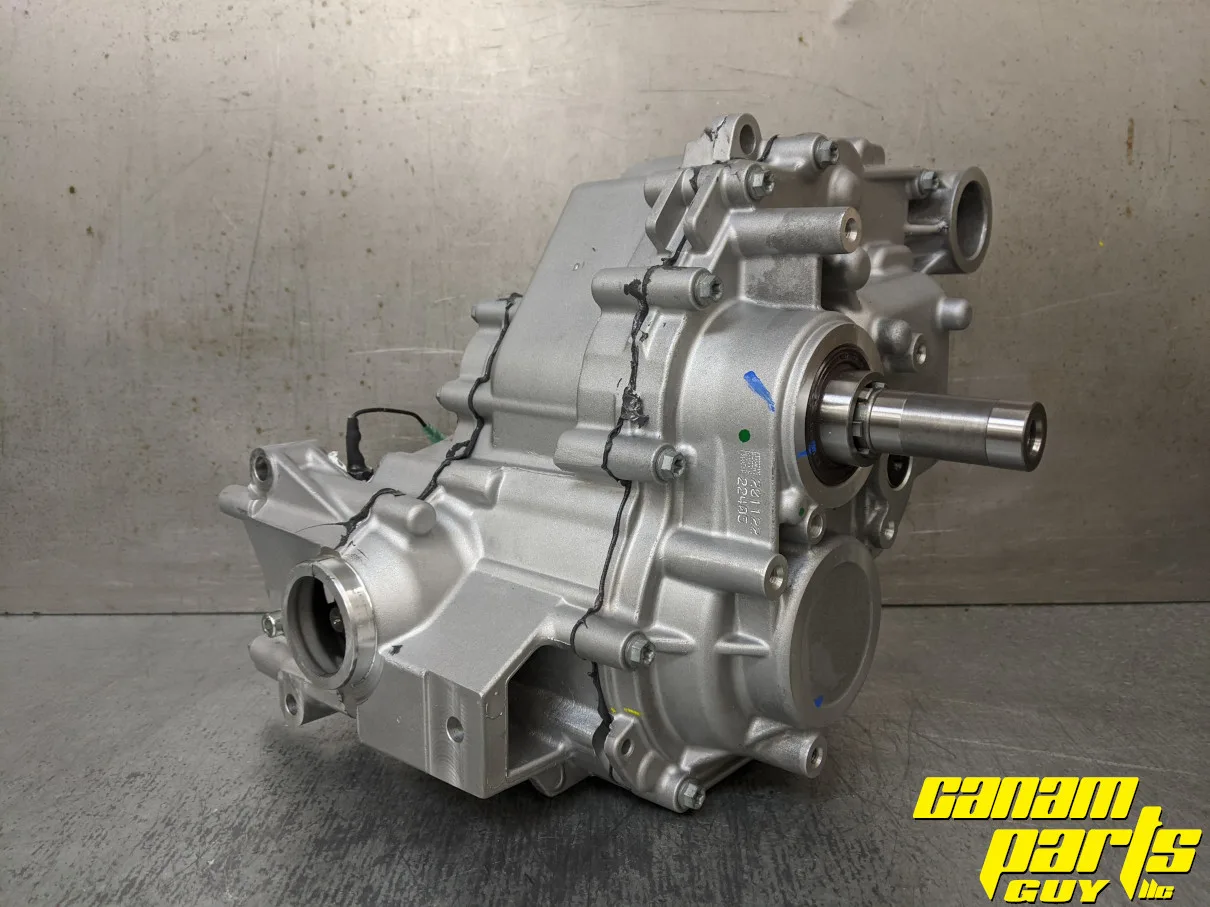

New Can Am ATV Low Ratio Small Gear Box / Transmission
Will work on all Can-am Vtwin 500/570/650/800/850 Both Outlander or Renegade.
- New Can-Am GEAR BOX

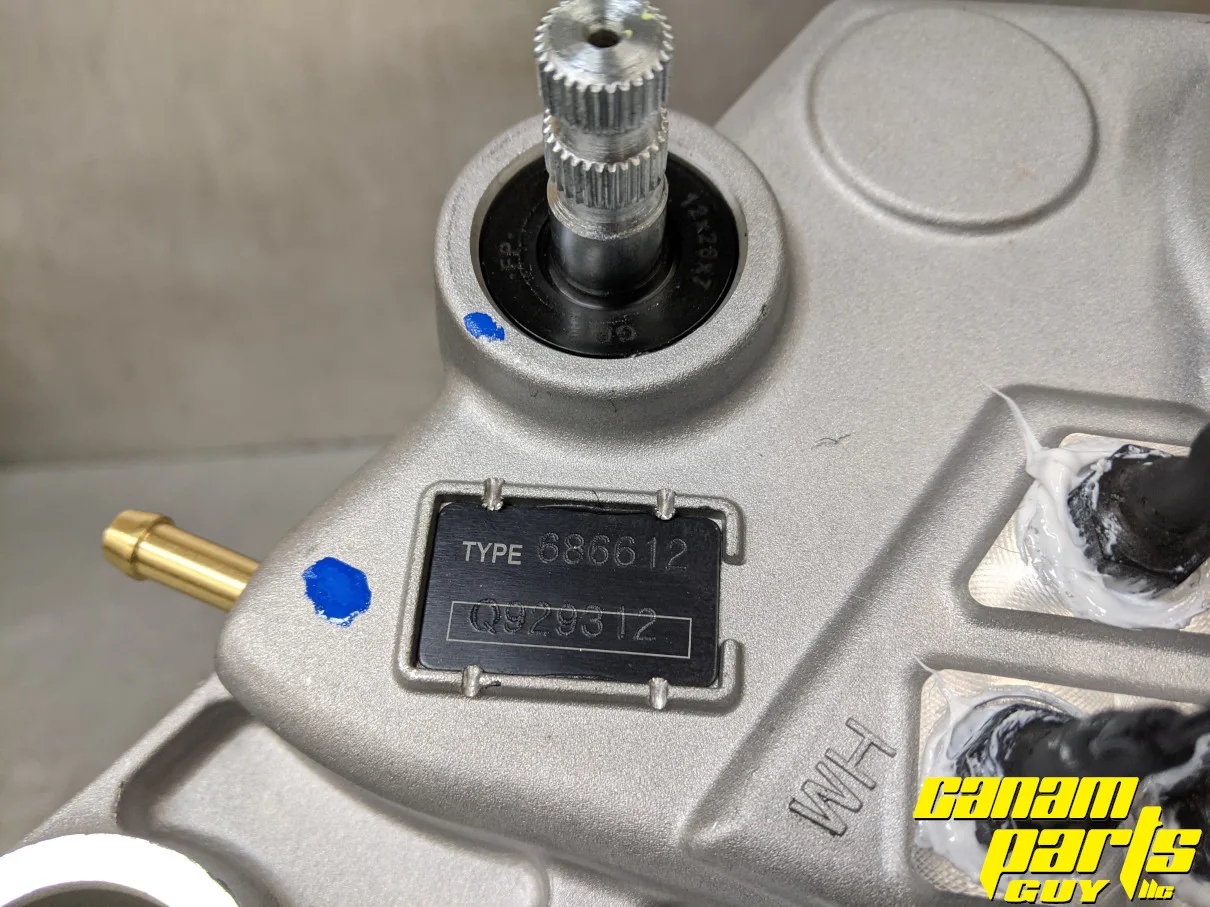

- Current Part Number- 420686612
- Replaces: 420684820, 420684824, 420684825, 420684827
- NEW OEM Canam Part NOT A REBUILD, ALL NEW
- This is the Low Ratio (6.4% Lower HIGH Range) gearbox than a standard 800 gearbox.
- This is found in Outlander or Renegade 500’s, Outlander 650’s and the Outlander 800R XMR
Teeth count and gear ratio
Ring & Pinion 32/13 = 2.462
High Gear set 35/28 = 1.125
Low Gear set 43/20 = 2.150
High final ratio 3.078:1
Low final ratio 5.29:1
Driveshaft bolt not included; this may be a different size from your current bolt. We can help, just contact us.
2015 and newer non XMR outlander 1000’s have this style gearbox, if you have fitment questions, please contact us!
